GEOPVC
Oriented PVC (OPVC) pressure pipe — ISO 16422 compliant, 50-year warranty.
- DN 90–500 (custom to 1200)
- PN 12.5 / 16 / 20 / 25
- ISO 16422 · EN 17176-2
- 50-yr warranty
GEOPVC is a high-performance pressure pipe produced with oriented PVC (OPVC) technology. The molecular orientation process aligns polymer molecules along the pipe axis, increasing tensile, fatigue, and impact resistance significantly over conventional uPVC. The result: thinner-wall, lighter pipe at the same pressure class. The line is fully compliant with ISO 16422 and EN 17176-2 for irrigation mains, drinking-water networks, fire-suppression systems, and pumping lines. The manufacturer issues a written 50-year warranty.
Standard production covers DN 90–500 mm in 6 m lengths; DN 630–1200 mm available made-to-order. Pressure classes PN 12.5, 16, 20, and 25 are supplied. Terra-Zenith supplies GEOPVC as the Geoflow Türkiye authorised distributor for Türkiye and regional markets, providing project sizing and installation guidance.
How is oriented PVC (OPVC) different from standard uPVC?

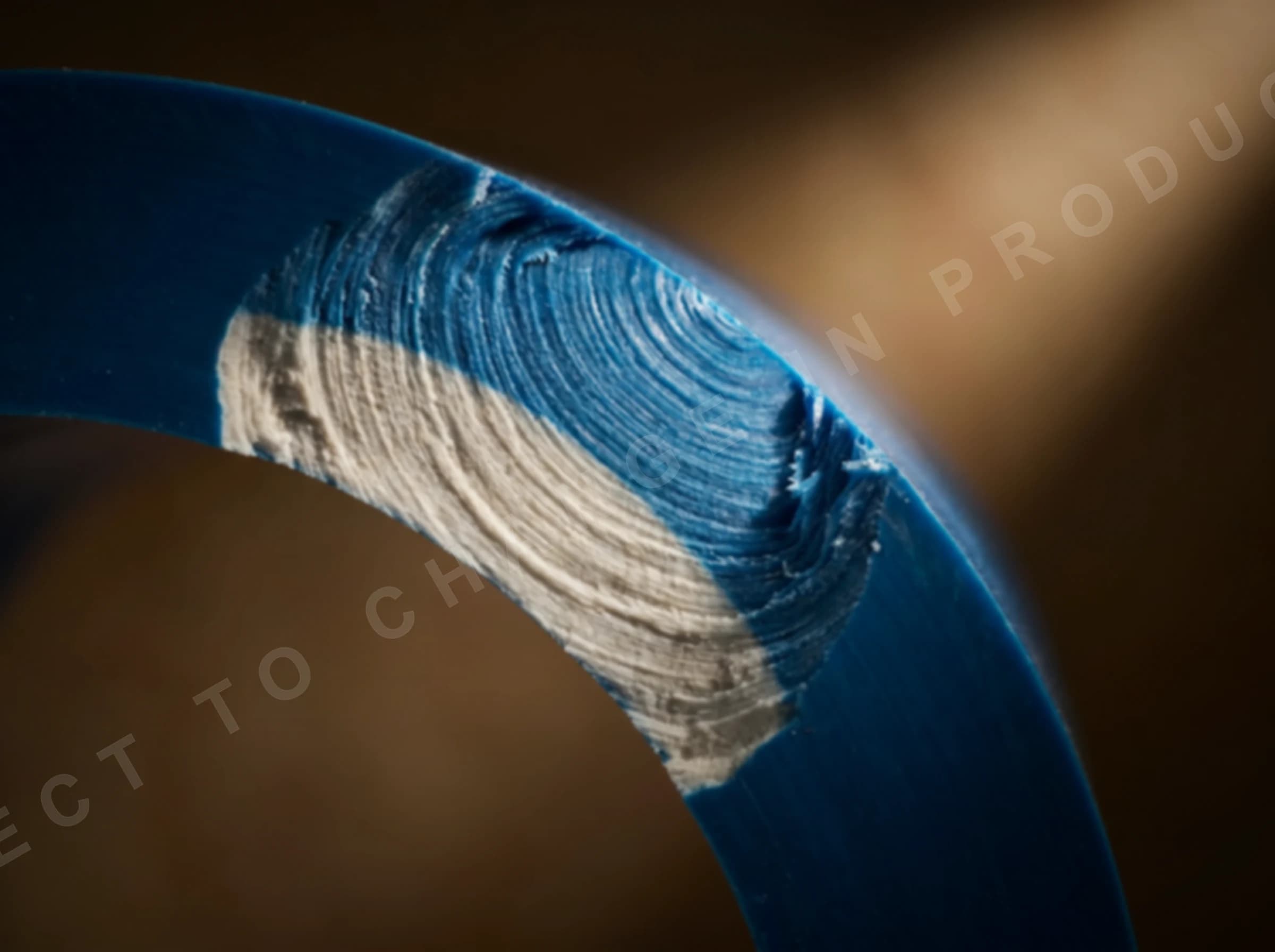

In conventional PVC pipe, polymer molecules are randomly oriented. The OPVC production process aligns molecules axially, producing a "layered" microstructure visible even to the naked eye. Axial alignment gives the pipe materially higher resistance to tensile and internal-pressure stress than uPVC: at the same pressure class, OPVC has lower wall thickness, lower weight, and lower hydraulic loss.
Lower wall = lower transport cost, faster installation, greater internal diameter at the same PN class (and therefore higher hydraulic capacity). Axial alignment also raises impact and fatigue resistance — cracking risk near freezing conditions is materially lower than uPVC.
Technical Specifications
Oriented PVC (OPVC) pressure pipe — ISO 16422 compliant, 50-year warranty.
| Nominal diameter | DN 90 – 500 (DN 630 – 1200 made to order) |
|---|---|
| Pressure class | PN 12.5 / 16 / 20 / 25 |
| Standards compliance | ISO 16422 · EN 17176-2 |
| Warranty | 50 yıl / years / лет |
What applications is GEOPVC suited for?

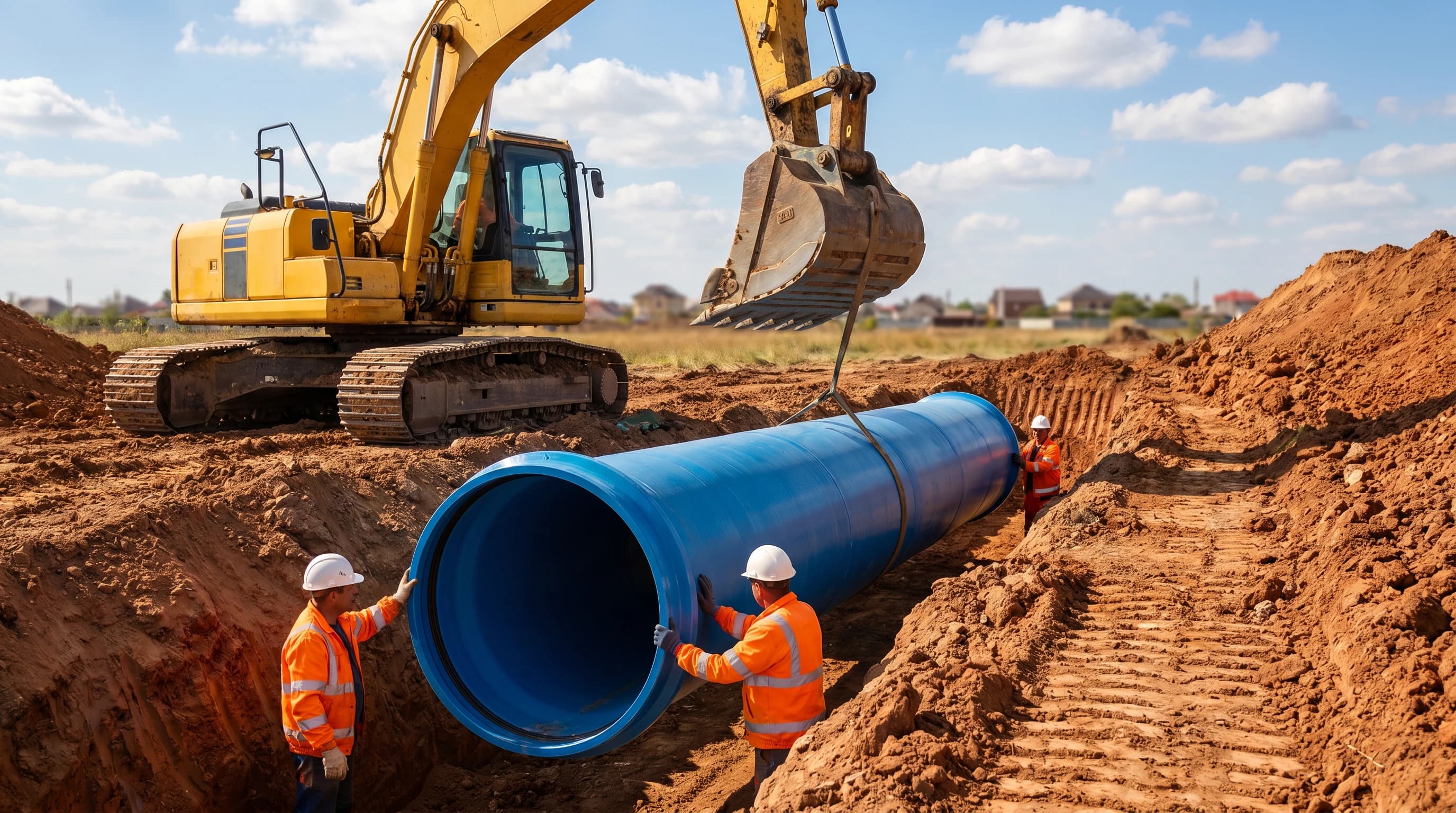

GEOPVC is used in agricultural irrigation mains (large-diameter distribution upstream of drip and sprinkler), municipal drinking-water networks, fire-suppression mains, industrial pumping networks, and industrial-estate infrastructure. ISO 16422 compliance permits drinking-water contact.
50-year service life and low hydraulic loss reduce total cost of ownership (TCO) significantly over classical PVC and HDPE alternatives. The product is preferred for long-life infrastructure: municipal, industrial-estate, and large agricultural operations.
"Oriented PVC (OPVC) pressure pipe — ISO 16422 compliant, 50-year warranty."
Fitting compatibility
GEOPVC pipe accepts standard gasketed (R/R, R/F) and flanged fittings. Conventional uPVC or HDPE fittings can be used in the same project, preserving backward compatibility with existing infrastructure standards.
Application Areas
Oriented PVC (OPVC) pressure pipe — ISO 16422 compliant, 50-year warranty.
Frequently Asked Questions
What certifications does GEOPVC carry?
Fully compliant with ISO 16422 and EN 17176-2. Certified for drinking-water contact, irrigation, and industrial applications. The manufacturer issues a written 50-year warranty.
How can I source DN 1200 mm pipe?
DN 630–1200 mm sizes are made to order. Terra-Zenith prepares a project-specific quote including sizing and lead time. Contact terra-zenith.ru/en/contact.
What does GEOPVC cost?
Price varies by DN, PN class, quantity, and delivery location. Terra-Zenith sends a same-day, project-specific quote on receipt of your size list and delivery point.
Can I add GEOPVC to my existing PVC network?
Yes. GEOPVC accepts standard gasketed and flanged fittings, so it integrates with existing PVC or HDPE network segments.
What is the lead time in Russia?
Standard DN 90–500 sizes typically ship from stock in 7–14 days; large made-to-order diameters require 4–8 weeks. Project-specific lead time is confirmed against order quantity.
GEOPVC is the oriented PVC pressure pipe of Geoflow Türkiye. Terra-Zenith is the Geoflow Türkiye authorised distributor for Türkiye and regional markets, providing project sizing, supply, and installation guidance. terra-zenith.ru
